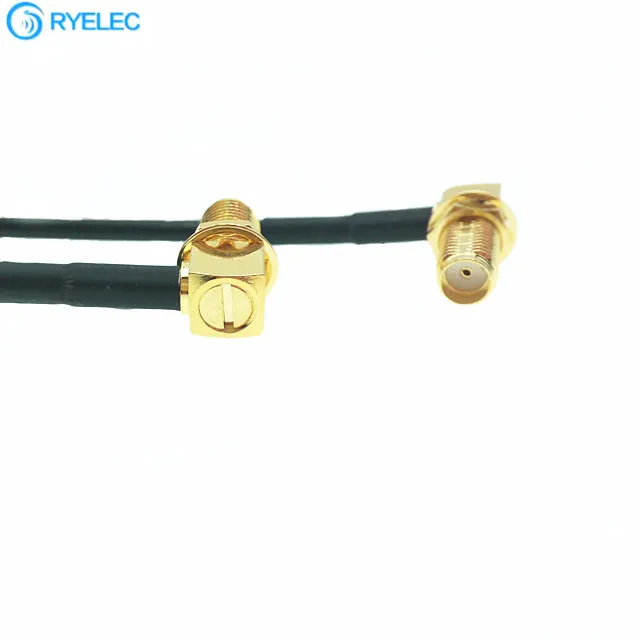

RF Coaxial Extension Cable RG174 Plated Gold SMA RA female to SMA male with 100mm Cable assembly

FOB Reference Price:Get Latest Price
$0.50 - $1.80 / Piece | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
RY
Model Number:
RY-2351879
Number of Conductors:
1
Cable type:
RG series,low loss cable
Application:
RF Device
Certification:
CE/ROHS/ISO9001
Plating:
Nickel or gold
VSWR:
≤1.5
Cable length:
Optional
Name:
SMA RA female cable
Frequency:
0-6ghz
Conductor:
tinned/slivered copper
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pc/polybag packaging
Port
shanghai

SMA RA female cable



Product Description

RF Coaxial Extension Cable RG174  Plated Gold SMA RA female to SMA  male with 100mm Cable assembly






 Specification:

ELECTRICAL DATA
Impedance
50 Ohm
Frequency range
DC-6Ghz
VSWR
1.3 max
Voltage
60V AC(rms)
Insulation Resisitance
500 M Ohm min.
Insertion Loss
0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ
MATERIAL DATA
Bodies
Brass--gold/nickel plating
Pin contacts
Brass--gold plating
Socket contacts
Copper-beryllium alloy--Au plating
Insulator
PTFE
Cable type
0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240,LMR400,Semi-rigid,semi-flexible,super flexible, Formable,etc
Application
smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc
Temperature range
-40°C to +80°C/200°C
